All Available axles

Drawing numbers and dimensions

Our all available Axles with stud patterns, flange details and dimensions. Lengths are given for the L (long), M (medium) and S (short) sides. Search by name, drawing number or spline count.

Axle dimension diagram

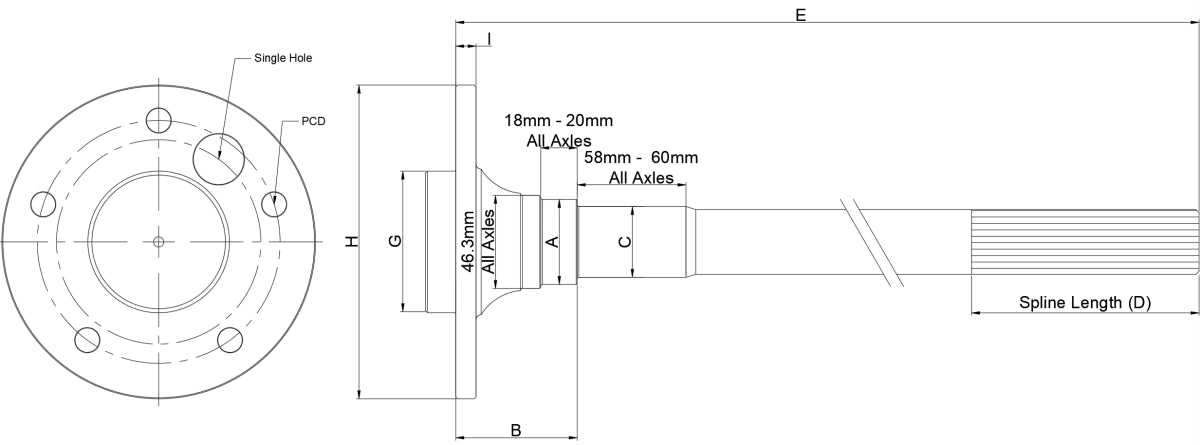

Where each lettered dimension is measured on the axle

30 axles

Item name Drawing no. Stud pattern Flange PCD / Ø B C Ø A Ø I H Ø G D Spline Length (E)
Blank 28SP 101/102/103 – PCD 101.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 12.5mm 155.0mm 71.3mm 160mm/min 28-SP L 820.0mm
M 729.0mm
Blank 31SP 104/105/106 – PCD 101.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 12.5mm 155.0mm 71.3mm 160mm/min 31-SP L 850.0mm
M 760.0mm
S 630.0mm
Blank HD 31SP 107/108/109 – PCD 101.0mm
Hole Ø25.0mm		 62.5mm 39.76mm 47.67mm 12.5mm 175.0mm 71.3mm 160.0mm/min 31-SP L 950.0mm
M 850.0mm
S 750.0mm
Blank 35SP 110/111/112 – PCD 102.0mm
Hole Ø25.0mm		 62.5mm 39.76mm 47.67mm 12.5mm 175.0mm 71.3mm 160.0mm/min 35-SP L 820.0mm
M 729.0mm
S 601.0mm
Ford 28SP Wilwood 113/114 5×114.3mm
Hole Ø15.3mm		 PCD 97.0mm
Hole Ø25.0mm		 59.0mm 35.035mm 42.0mm 10.0mm 155.0mm 71.3mm 160mm/min 28-SP L 820.0mm
S 729.0mm
31SP HQ / Ford pattern, HQ drum & Wilwood brakes 115/116 5×114.3mm
5×120.5mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø25.0mm		 59.0mm 35.035mm 42.0mm 10.0mm 155.0mm 71.3mm 160mm/min 31-SP L 820.0mm
S 729.0mm
Ford 31SP EA / EB 117/118 5×114.3mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø25.0mm		 59.0mm 35.035mm 42.0mm 10.0mm 155.0mm 70.4mm 160.0mm/min 31-SP L 850.0mm
S 750.0mm
Ford XY 28SP 119/120 5×114.3mm
Hole Ø11.5mm		 PCD 101.0mm
Hole Ø30.0mm		 60.0mm 35.035mm 42.0mm 10.0mm 155.0mm 61.7mm 90.0mm/min 28-SP L 792.0mm
S 692.0mm
Ford XY 31SP 121/122 5×114.3mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø25.0mm		 59.0mm 35.035mm 42.0mm 10.0mm 155.0mm 61.7mm 160.0mm/min 31-SP L 792.0mm
S 692.0mm
HQ 28SP 123/124 5×120.65mm
Hole Ø11.5mm		 PCD 97.0mm
Hole Ø25.0mm		 60.0mm 35.035mm 42.0mm 10.0mm 155.0mm 71.3mm 160mm/min 28-SP L 820.0mm
S 729.0mm
HQ 28SP VN disc 125/126 5×120.65mm
Hole Ø11.5mm		 PCD 101.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 155.0mm 69.7mm 160.0mm/min 28-SP L 807.0mm
S 729.0mm
HQ 31SP VN disc 127/128 5×120.65mm
5×120.00mm
Hole Ø11.5mm		 PCD 101.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 155.0mm 69.7mm 160.0mm/min 31-SP L 820.0mm
S 724.0mm
Torana 28SP 129/130 5×107.95mm
Hole Ø11.5mm		 PCD 101.0mm
Hole Ø30.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 140.0mm 61.7mm 160.0mm/min 28-SP L 770.0mm
S 700.0mm
Torana 31SP 131/132 5×107.95mm
Hole Ø11.5mm		 PCD 101.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 140.0mm 61.7mm 160.0mm/min 31-SP L 800.0mm
S 700.0mm
VL 31SP 133/134 5×120.0mm
Hole Ø12.3mm		 PCD 101.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 155.0mm 69.7mm 160.0mm/min 31-SP L 795.0mm
S 695.0mm
VL 31SP, ½ inch studs 135/136 5×120.0mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 155.0mm 69.7mm 160.0mm/min 31-SP L 795.0mm
S 695.0mm
VL 28SP 137/138 5×120.0mm
Hole Ø12.3mm		 PCD 97.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 155.0mm 69.7mm 160.0mm/min 28-SP L 795.0mm
S 695.0mm
Blank VL 28SP B-137/B-138 – PCD 97.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 155.0mm 69.7mm 160.0mm/min 28-SP L 795.0mm
S 695.0mm
VN 28SP, HQ pattern 139/140 5×120.65mm
Hole Ø12.3mm		 PCD 97.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 155.0mm 69.7mm 160mm/min 28-SP L 820.0mm
S 729.0mm
VN 31SP, HQ pattern 141/142 5×120.65mm
Hole Ø12.3mm		 PCD 97.0mm
Hole Ø25.0mm		 62.5mm 35.035mm 42.0mm 10.0mm 155.0mm 69.7mm 160mm/min 31-SP L 820.0mm
S 729.0mm
WB 143/144 5×120.65mm
Hole Ø11.5mm		 PCD 101.0mm
Hole Ø30.0mm		 48.6mm 35.035mm 42.0mm 10.0mm 148.0mm 71.3mm 160.0mm/min 31-SP L 820.0mm
S 724.0mm
Ford Ranger 145/146 6×139.7mm
Hole Ø12.3mm		 – 40.5mm 45.0mm INR 37.0mm 10.0mm 179.5mm 93.0mm 122.0mm 32-SP L 908.0mm
S 870.0mm
Ford 31SP, ABS, BA / BF / FG brakes 147/148 5×114.3mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø30.0mm		 53.5mm 35.035mm 42.0mm 10.0mm 148.0mm 70.3mm 160.0mm/min 31-SP L 850.0mm
S 750.0mm
Ford 31SP, disc / drum 149/150 5×114.3mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø30.0mm		 59.0mm 35.035mm 42.0mm 10.0mm 148.0mm 70.3mm 160.0mm/min 31-SP L 850.0mm
S 750.0mm
Ford 30SP, BA / BF / FG 151/152 5×114.3mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø30.0mm		 53.5mm 35.035mm 42.0mm 10.0mm 148.0mm 70.3mm 160.0mm/min 30-SP L 850.0mm
S 750.0mm
LJ Torana 28SP 153/154 5×107.95mm
Hole Ø11.5mm		 PCD 101.0mm
Hole Ø30.0mm		 56.0mm 35.035mm 42.0mm 10.0mm 140.0mm 61.7mm 160.0mm/min 28-SP L 770.0mm
S 700.0mm
HQ / Commodore pattern 35SP, VN disc 155/156 5×120.65mm
5×120.00mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø20.0mm		 62.5mm 39.76mm 47.67mm 12.5mm 175.0mm 71.3mm 155.0mm/min 35-SP L 820.0mm
M 729.0mm
S 601.0mm
Ford / HQ pattern 35SP, Wilwood brakes & Ford drum 157/158 5×120.65mm
5×114.30mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø20.0mm		 59.0mm 39.76mm 47.67mm 12.5mm 175.0mm 71.3mm 155.0mm/min 35-SP L 820.0mm
M 729.0mm
S 601.0mm
HQ / Commodore pattern HD 31SP, VN disc 159/160 5×120.65mm
5×120.00mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø20.0mm		 62.5mm 39.76mm 47.67mm 12.5mm 175.0mm 71.3mm 155.0mm/min 31-SP L 820.0mm
M 729.0mm
S 601.0mm
Ford / HQ pattern HD 31SP, Wilwood brakes & Ford drum 161/162 5×120.65mm
5×114.30mm
Hole Ø15.3mm		 PCD 101.0mm
Hole Ø20.0mm		 59.0mm 39.76mm 47.67mm 12.5mm 175.0mm 71.3mm 155.0mm/min 31-SP L 820.0mm
M 729.0mm
S 601.0mm

All dimensions in mm. Ø is diameter. SP is spline count. PCD is pitch circle diameter. D is machining feed rate. If your axle is not listed, send the details and we can most likely make it.
